Ürün detayları
Vurgulamak:
35um Bakır Folyo Levha Rulo
,70um Bakır Folyo Levha Rulo
,70um Haddelenmiş Bakır Folyo
Name:
Yumuşak Haddelenmiş bakır folyo
Width:
500 ~ 650 mm
Package:
Standart ahşap kutu
Application:
Ekranlama Malzemesi
Feature:
Düşük Pürüzlülük
Thickness:
10um, 18um, 35um, 70um
Width Accuracy:
± 1,5 mm
Purity:
≥99.95%
Surface Roughness:
≤0.32um
Oxidation Resistance:
180
Ürün Açıklaması
Genişlik 650mm Saf Yumuşak Bakır Folyo Levha Rulo
Ürün Özellikleri:
1. Elektromanyetik Koruyucu Malzemeler İçin
2. Düşük Pürüzlülük
3. Mükemmel Uzama Özelliği
4. Mükemmel Oksidasyon Direnci
5. Ürün ROHS çevre standartlarına uygundur
Uygulama Alanları
Havacılık, Tıbbi Cihaz ve Aletler, İletişim Sistemi ve Taşınabilir Elektronik Ürünler, vb.
Veri:
| Öğe | Birim | Gereklilik | Test metodu | ||||
| 10um | 18um | 35um | 70um | ||||
| Temel Ağırlık | g / m2 | 84.6-92.6 | 152.0-166.4 | 295,6-323,6 | 591,2-647,2 | GB / T29847-2013 | |
| Genişlik Doğruluğu | mm | ± 1.5 | GB / T 26303 | ||||
| Saflık | Cu | % | 99,95 | GB / T 5121 | |||
| Yüzey Pürüzlülük |
Ra | um | ≤0,32 | GB / T29847-2013 | |||
| Çekme Gücü |
Rm | n / mm2 | 103 | 130 | 50150 | 180 | GB / T29847-2013 |
| Uzama | A50 | % | ≥4.0 | ≥6.0 | ≥10.0 | ≥12.0 | GB / T29847-2013 |
| Oksidasyon Direnç |
Oda Sıcaklık |
gün | 180 | ||||

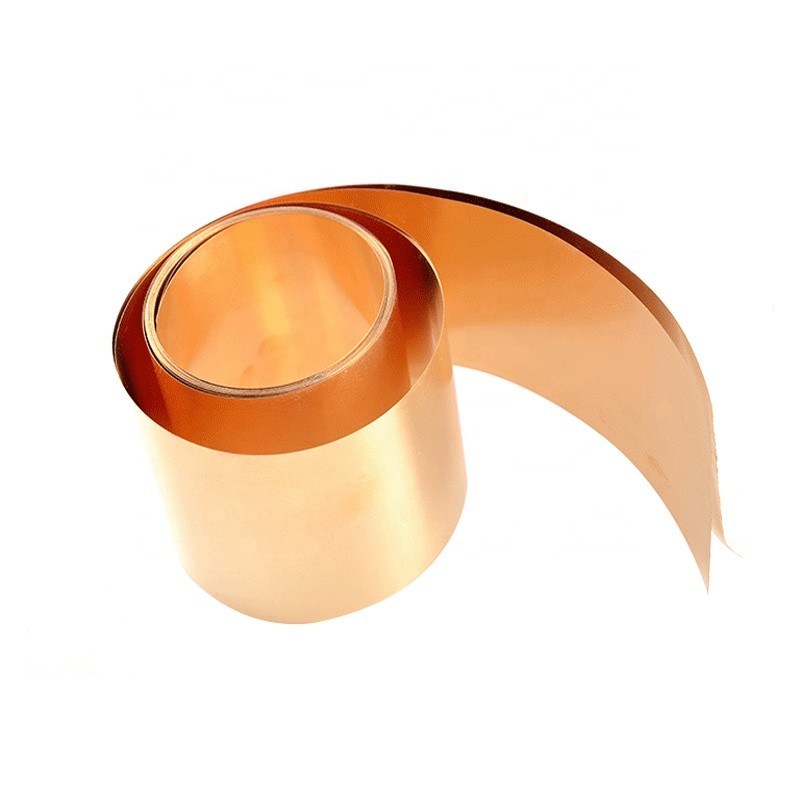

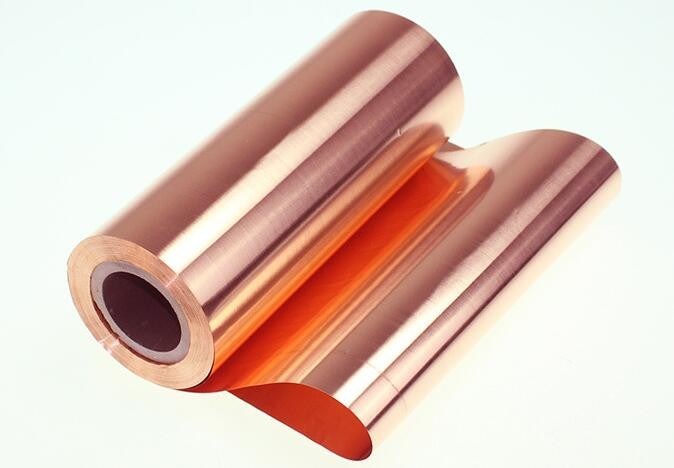

Ürün resimleri
